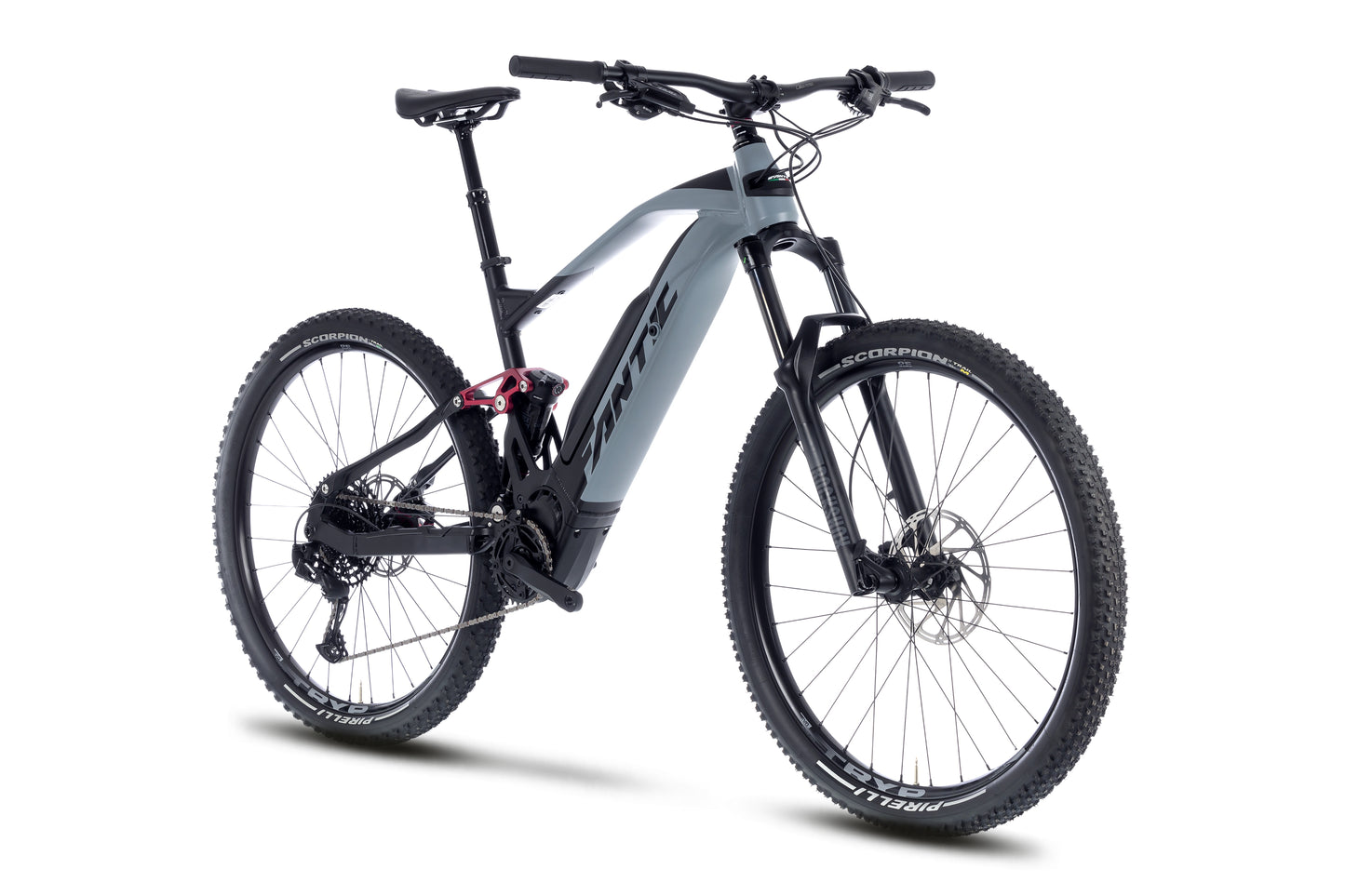

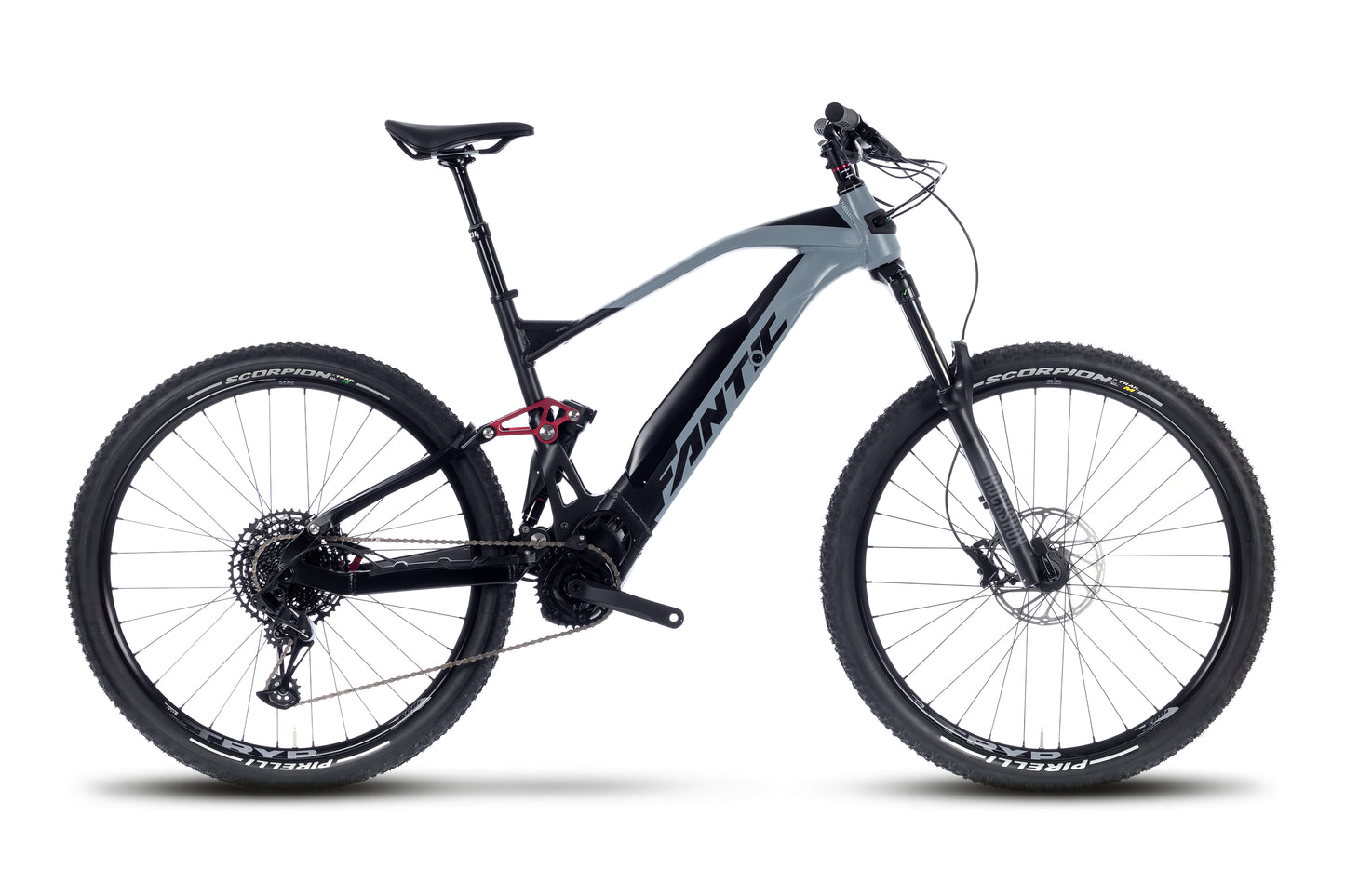

Fantic 1.5 XTF AllTrack
Regular price
$5,999.00
Regular price
$7,899.00
Sale price
$5,999.00
Unit price
/
per
Couldn't load pickup availability
Find a Store
Find a Store
Loading store locator
from Stockist store locator...
Description
Description
MOTOR Brose S-ALU 36 Volt,
Max power: 250 Watt,
Torque/Coppia: 90 Nm
BATTERY Fantic Integra, Lithium Ion, 36 Volt, 630Wh
DISPLAY Brose-All Round 4 multifunctional display & push-assistance selection unit

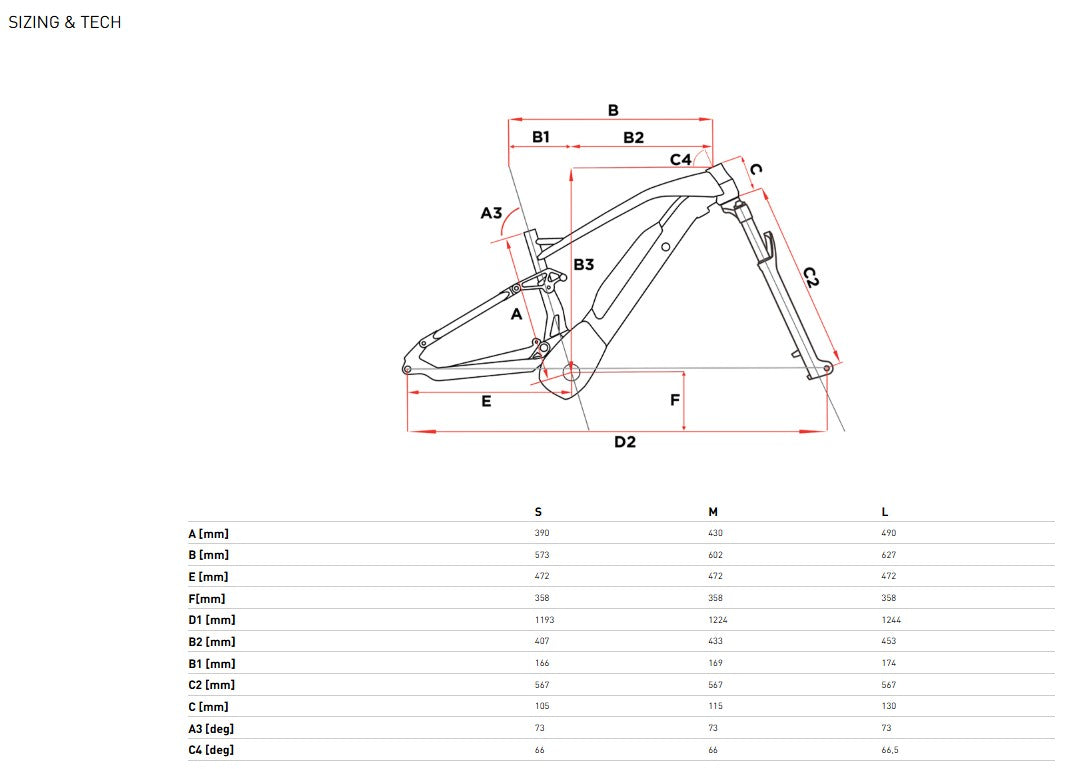

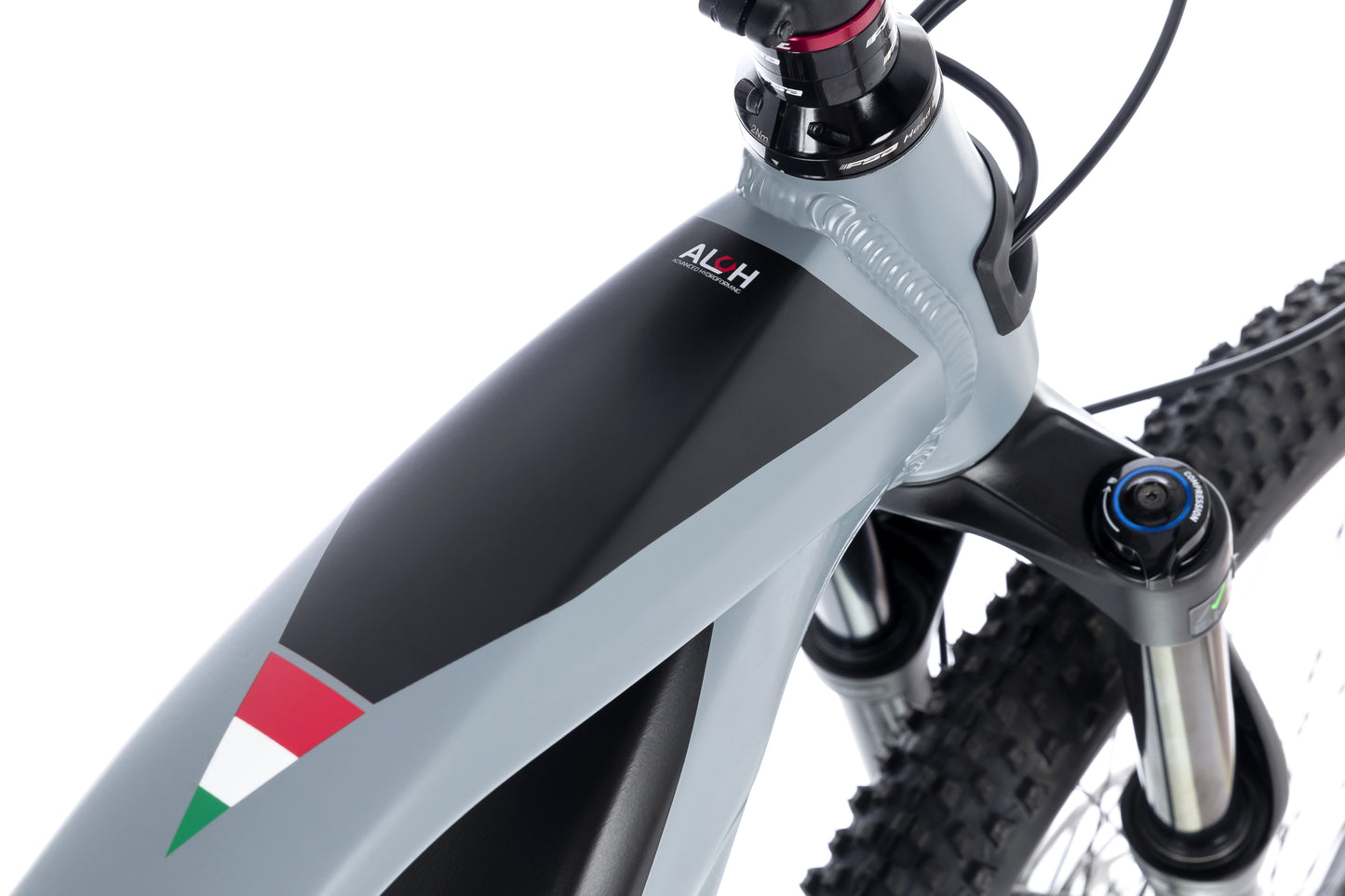

FRAME Aluminum, Sizes: S - M - L
FORK RockShox RECON Silver RL e-bike - 29” 150mm
SHOCK RockShox Deluxe Select T205x57,5 Air
CHAIN RINGS Sram 34t Steel Eagle
CRANK ARM Miranda Delta Isis Q - 165mm
REAR DERAILLEUR Sram SX Eagle 12V
SHIFT LEVERS Sram SX E-click
CASSETTE Sram SX Eagle 12V, 11-50
CHAIN Sram SX Eagle 12V
BRAKE (FRONT) Sram LEVEL 2 Piston disc brake
BRAKE (REAR) Sram LEVEL 2 Piston disc brake
DISC (FRONT) SramCenterLine, 200mm - 6Hole
DISC (REAR) SramCenterLine, 180mm - 6Hole
TIRES (FRONT) Schwalbe
SMARTSAM 29”x 2.6
TIRES (REAR) Schwalbe
SMARTSAM 29”x 2.6
WHEELS Rodi BlackJack TRIP30
HANDLEBAR GBC-MHB-A6074BT-780MM-RISE-20mm
STEM GBC-MAS-D6293-50MM±8°-ø31,8
SEATPOST Promax teles. SP -2038 Ø 30.9, S 80mm (SWITCH)/ M-L 100mm
SADDLE Selle Italia MODEL-X Comfort Superflow 145

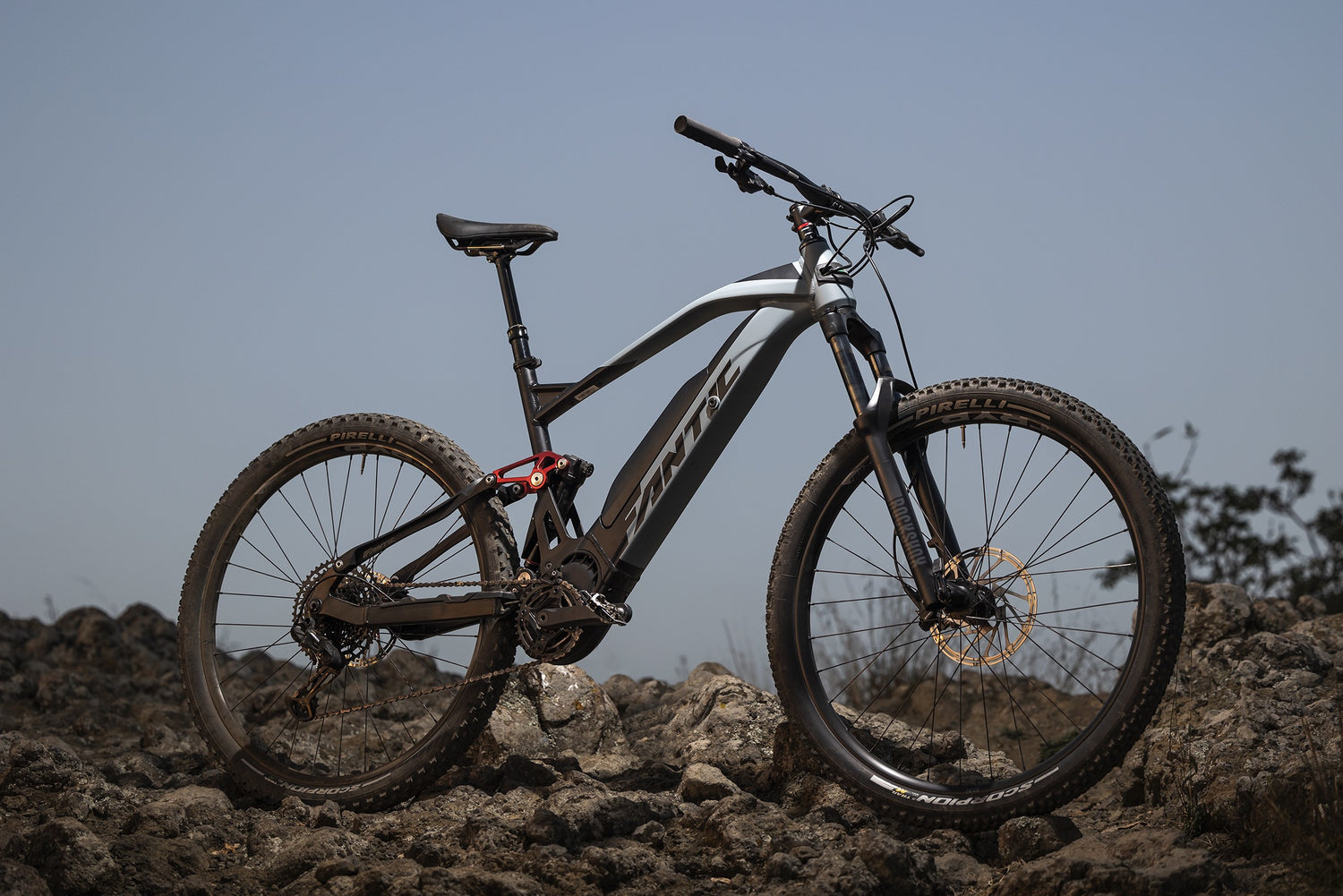

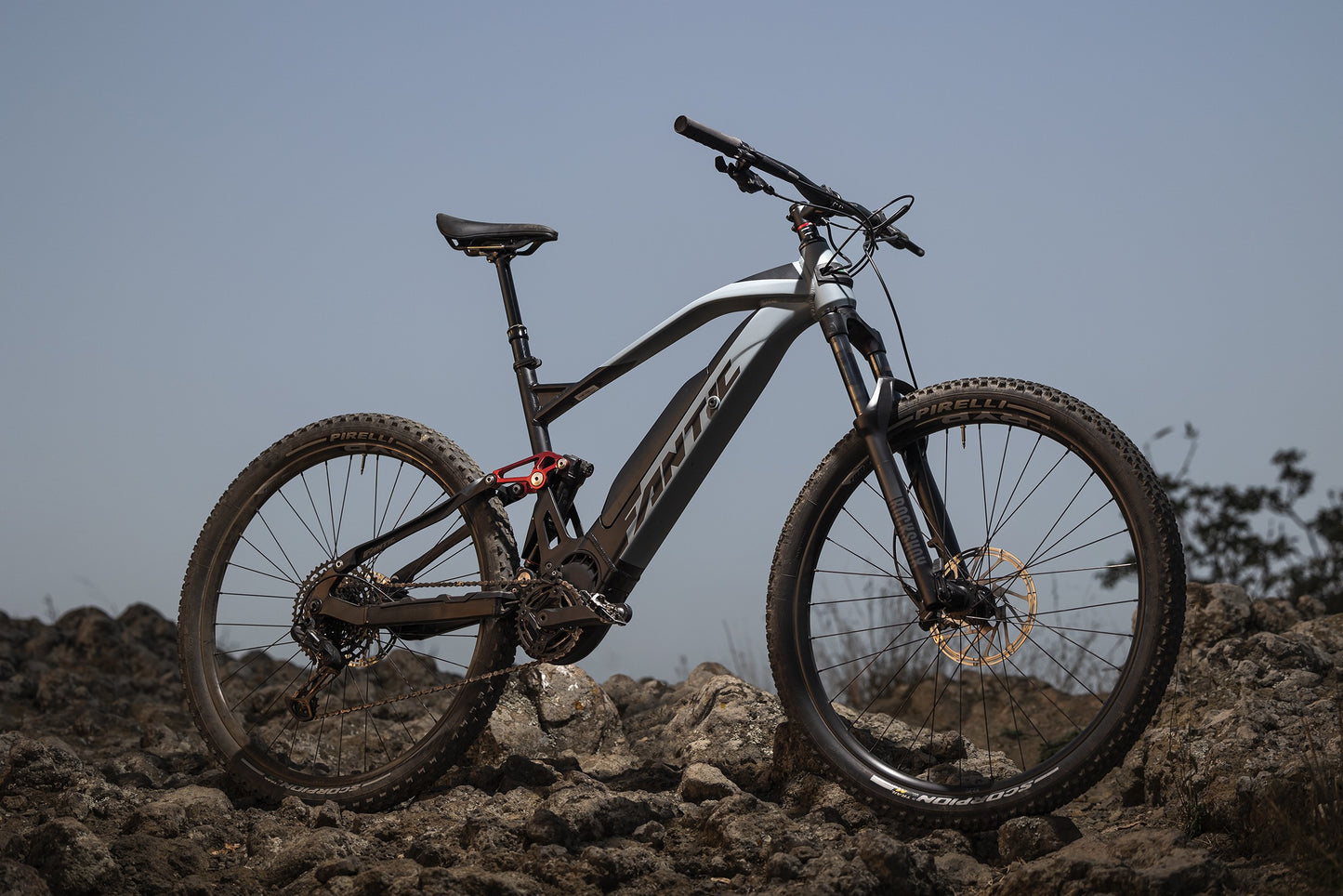

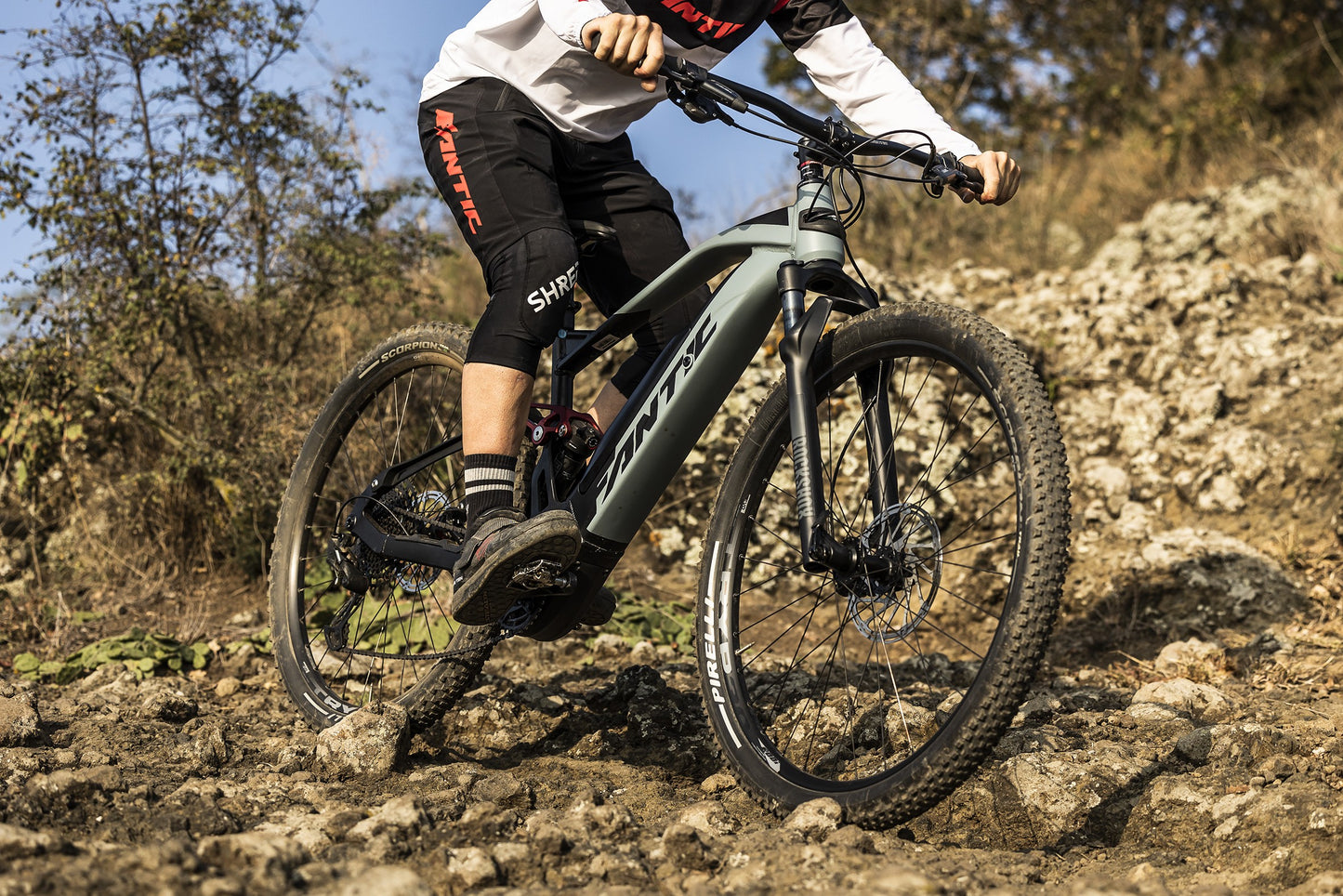

The XTF 1.5 Y ALL TRACK version represents total freedom: unlimited trails, pure adventure, a deep connection with nature, and thrilling challenges.
The pedal-assist motor chosen for thisfull-suspension E-MTBis theYamaha YMC PW-X3, capable of deliveringtop-tier performanceto allow riders to tackle any trail.
With amaximum torqueof 85 Nm, it provides aninstant responseeven at low pedaling cadences.
Power Unit
The630 Wh Fantic batteryofferslong-range funand unmatchedreliability.

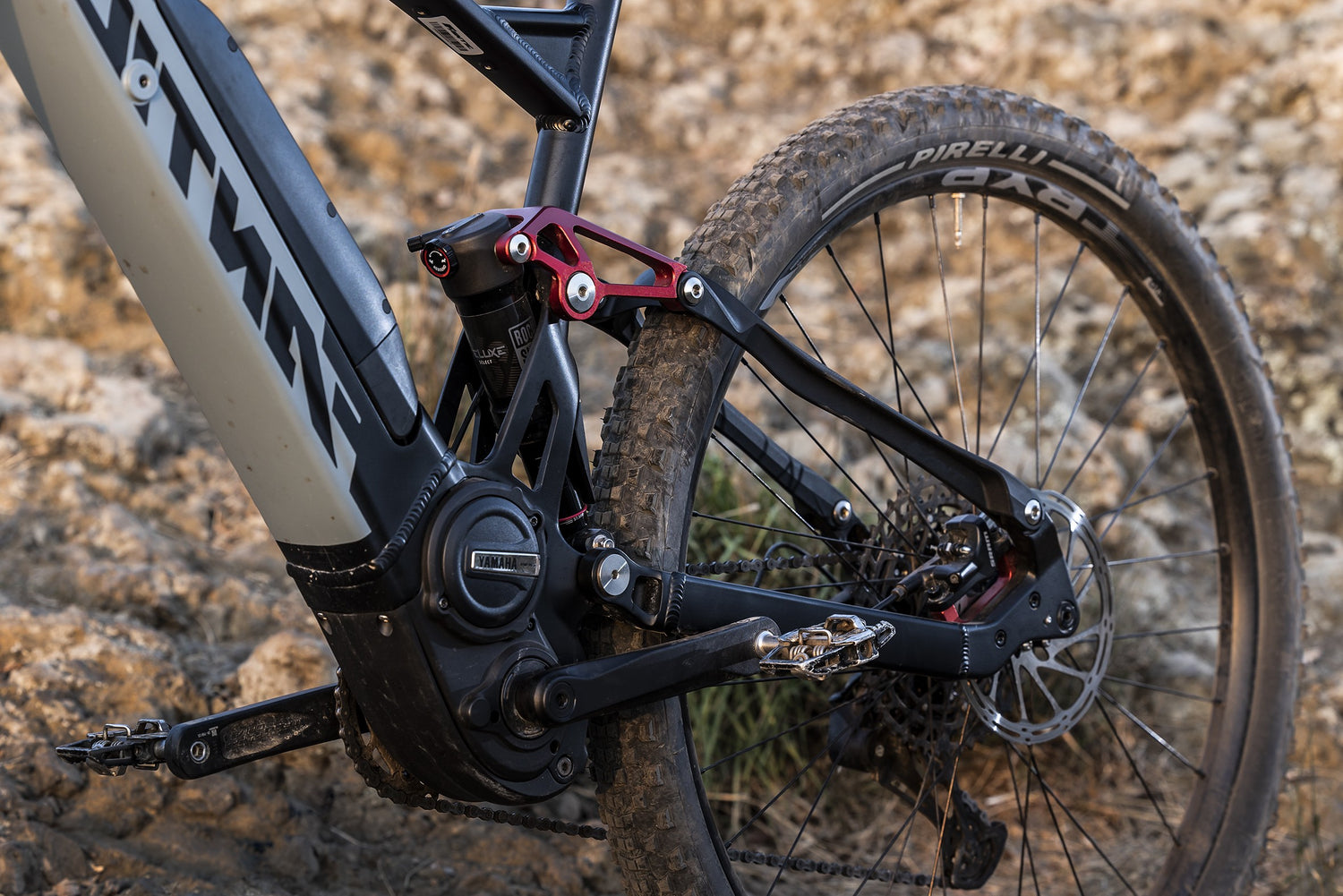

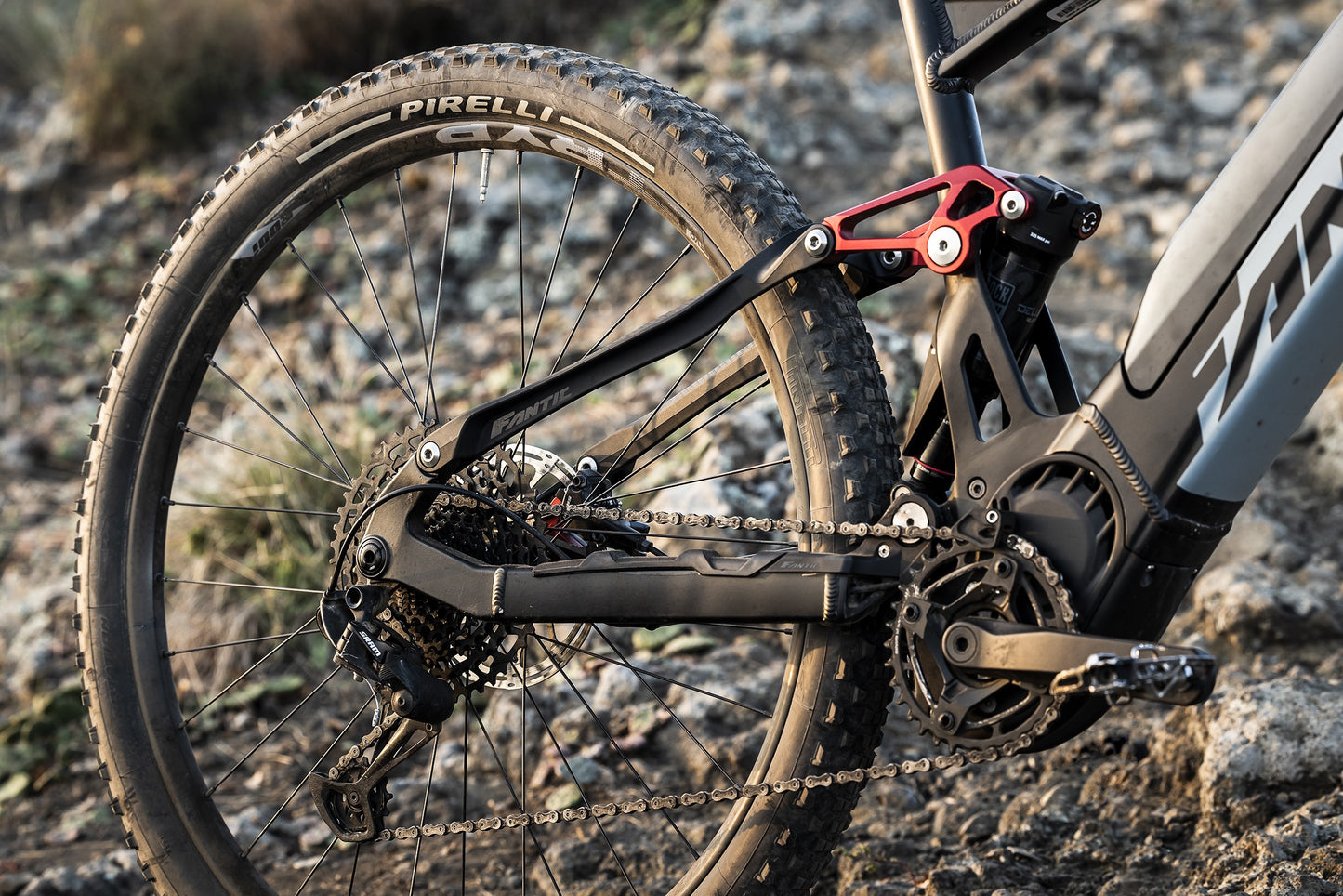

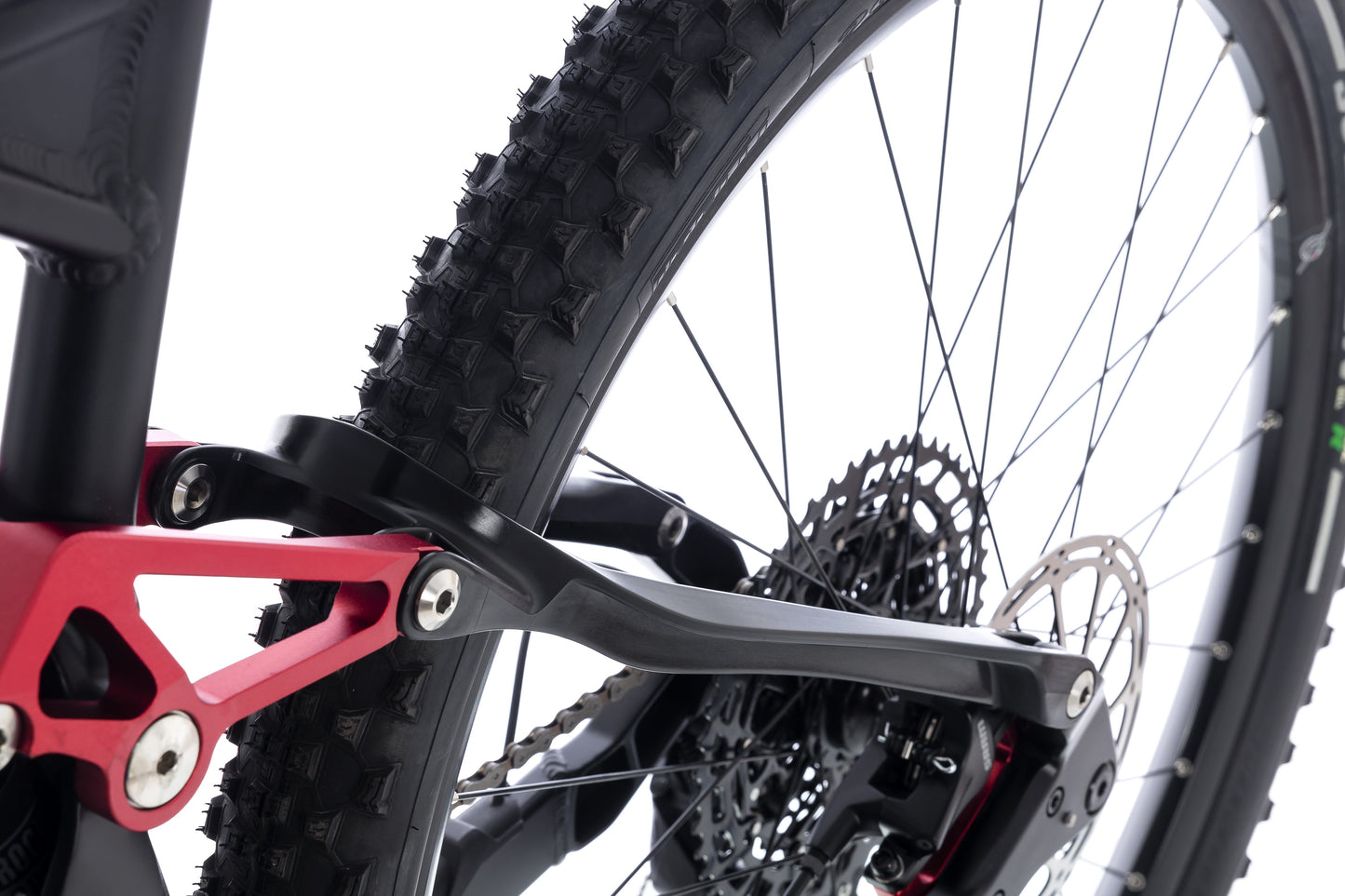

The aluminum frame, 150 mm of travel, and geometries meticulously designed by Fantic'sR&D departmentensureoutstanding riding performanceandtrail grip, taking your riding skills to the next level.
All that’s left is to try it.
Choose your trail, because thismountain bikewill take youanywhere.
Power Unit

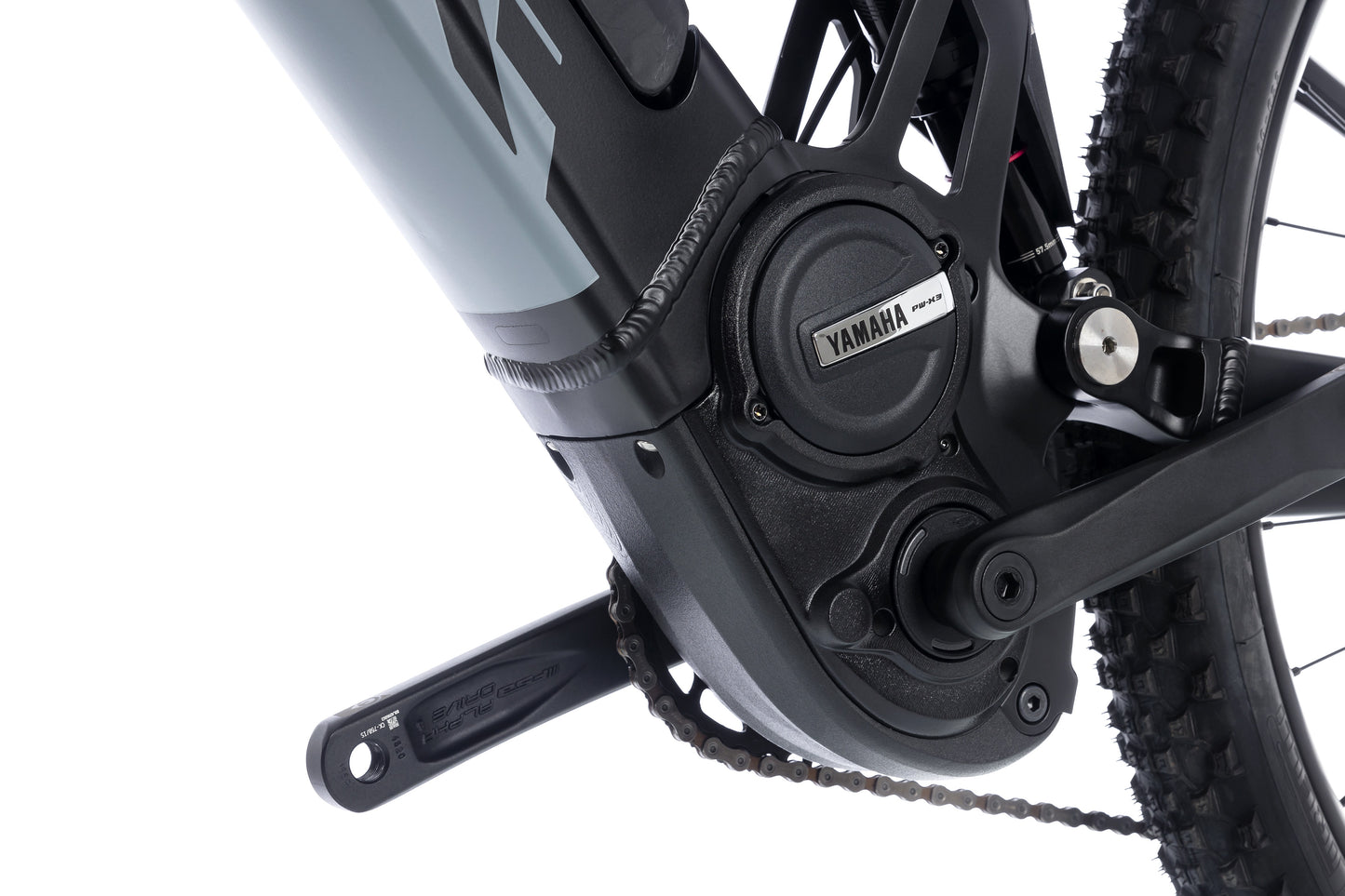

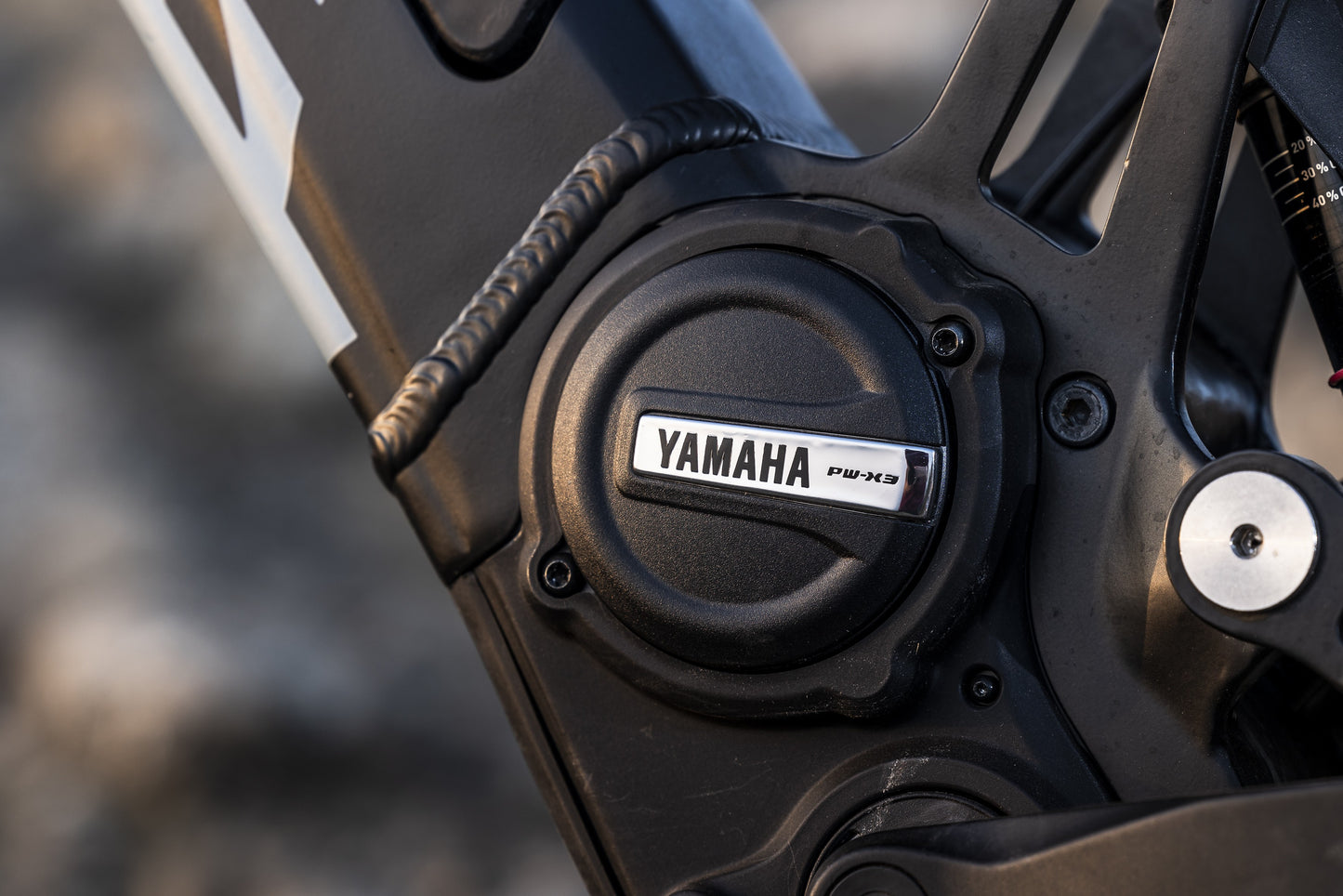

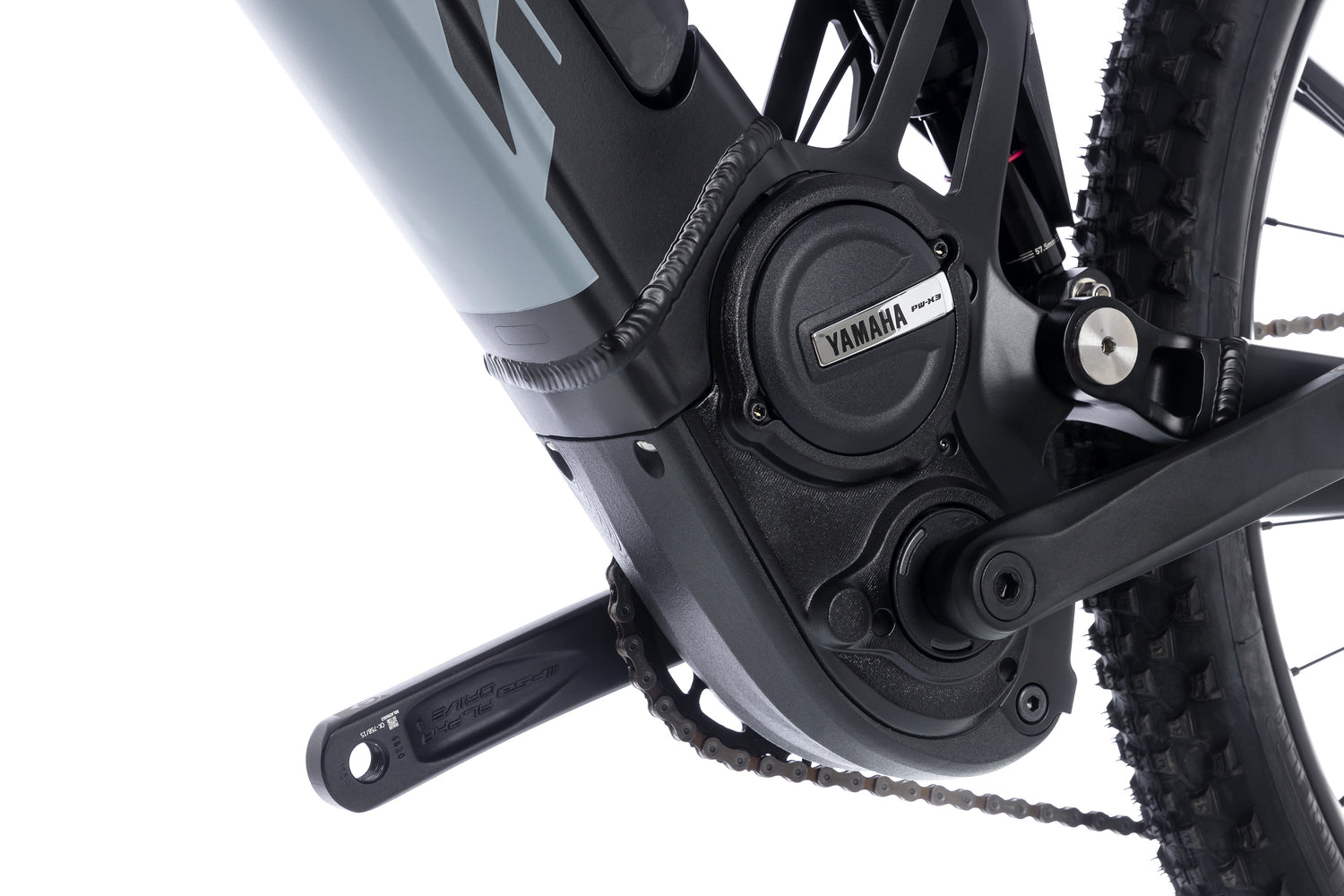

The Yamaha YMC PW-X3 electric pedal-assist motor represents the pinnacle of technology for E-MTBs.
Weighing just 2.75 kg, it delivers a maximum power output of 250 W and an impressive torque of 85 Nm, ensuring outstanding performance even on steep climbs. Its compact design allows for seamless frame integration, enhancing the bike's ergonomics. With immediate responsiveness, even at low cadence, it provides a smooth and natural riding experience.
Equipped with an intelligent assist system, it automatically adjusts support based on terrain and riding style. The Zero Cadence technology ensures instant power delivery as soon as pedaling begins.
This motor is engineered for reliable performance and maximum energy efficiency

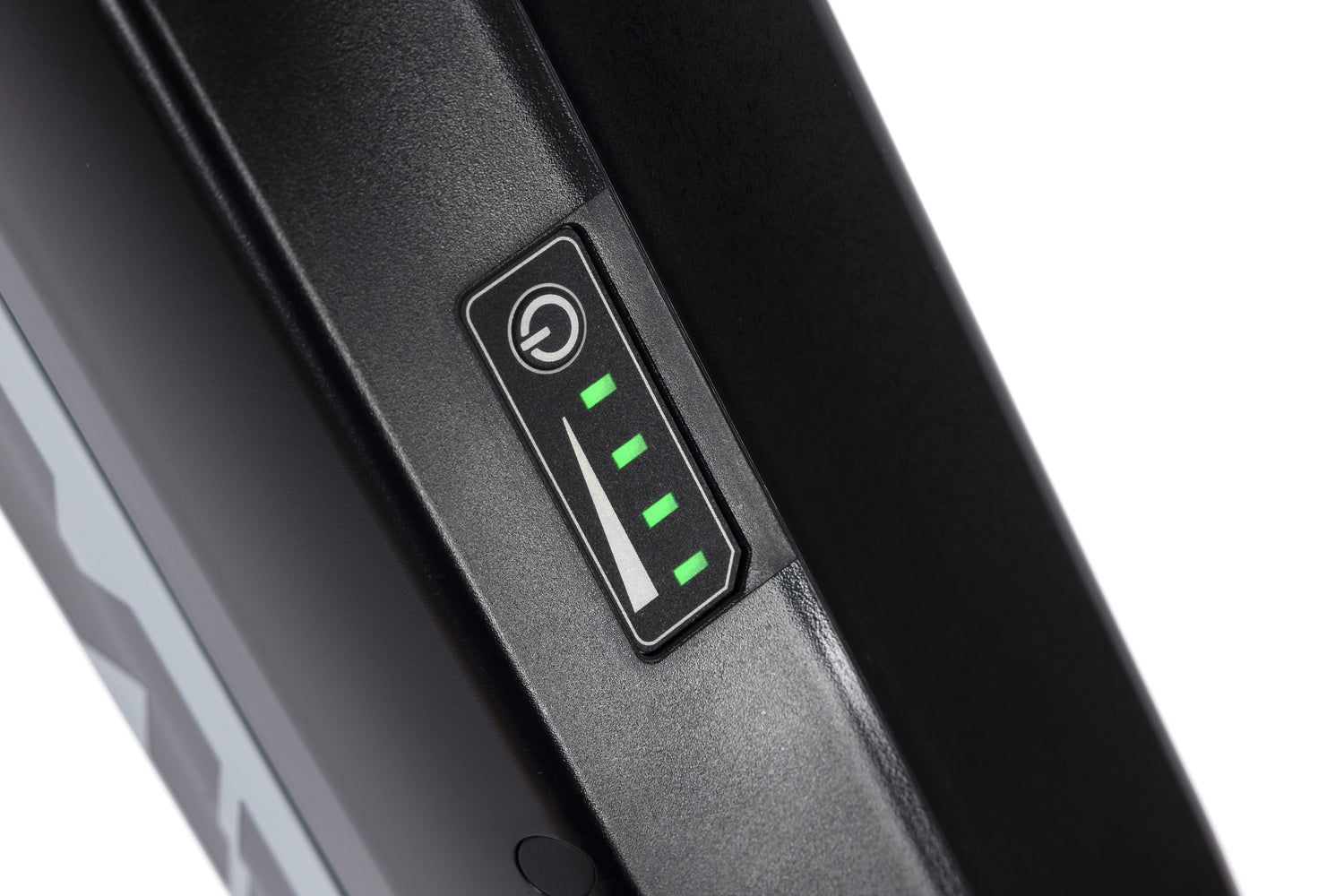

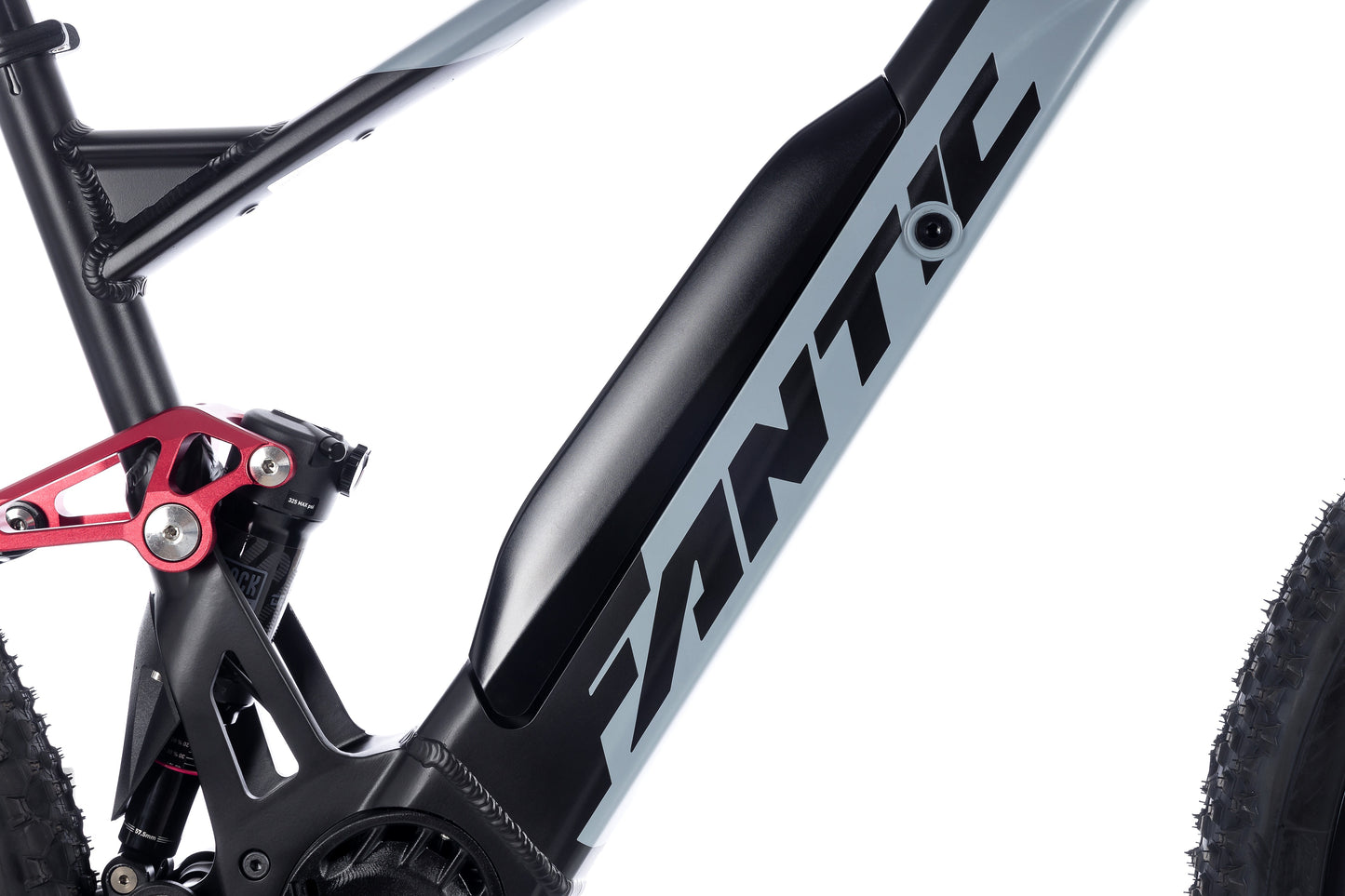

The Fantic Lithium-Ion Battery (36V – 630 Wh) is engineered to deliver superior range and reliable performance across any terrain. It ensures a consistent power output, optimizing motor efficiency and providing an immediate response to pedaling input.
The Battery Management System (BMS) intelligently safeguards against overvoltage, overheating, and irregular charge/discharge cycles, ensuring maximum safety and durability. Additionally, its rugged construction is designed to withstand impacts and harsh weather conditions, making it the perfect choice for demanding rides.
-
